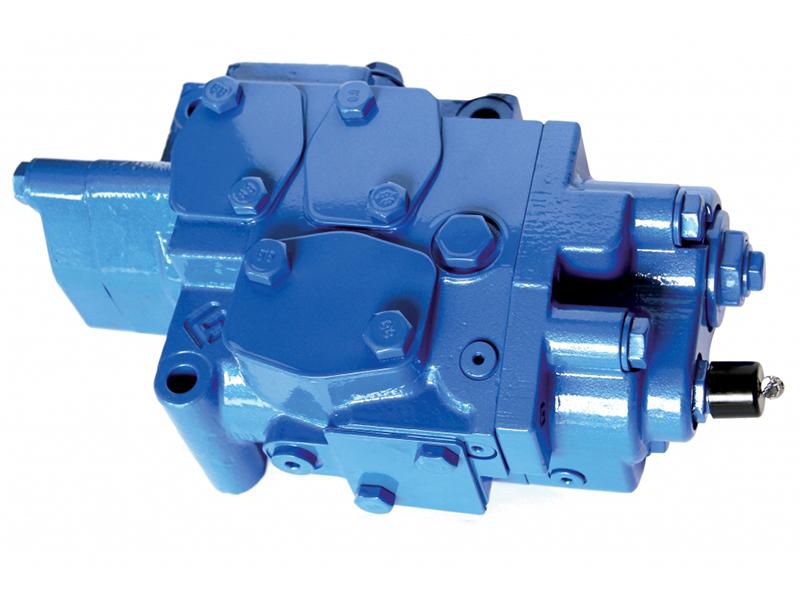

ZLF25(A) Flow Amplifier
- Flow amplifier comes in compact design and simple piping layout and can be used to optimize steering capacity.
- Control valve is easy and comfortable to operate.
- Hydraulic valve can provide set flow rate regardless of changes in the load pressure.
- Control valve brings a proportional control of steering flow.
- Designed with unloading function at low pressure and high flow to save energy.
Applications
- Loader
- Bulldozer
- Agricultural machinery
- Material handling machinery
Parameters
| Rated pressure (MPa) | 25 |
| Rated flow (L/min) | 160 |
| Output flow (L/min) | 80-145 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20-100 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 21 |
