HBV-L10F-00 Dual-circuit Hydraulic Brake Valve, Modulating Brake Valve
Applications
The hydraulic brake valve is used for construction equipment, material transfer vehicle, forestry and agricultural machinery, urban vehicles, etc.
Parameters
| Oil input pressure | 20MPa |
| Brake pressure | 12MPa |
| Oil return pressure | ≤0.5MPa |
| Viscosity range | 10-380 mm²/s |
| Oil temperature range | -20℃--100℃ |
| Oil cleanliness | No less than Level GB/T 14039-2002 19/16 or Level NAS 1638 10 |
| Mass | 4.5Kg |

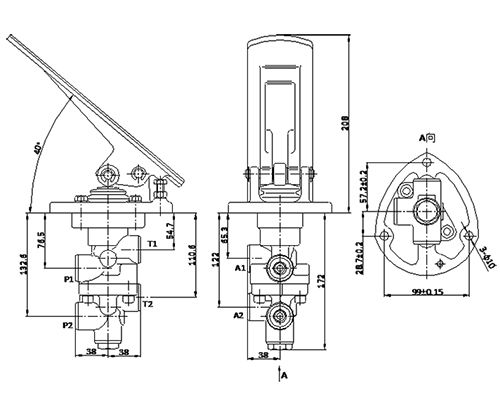

Outside view
