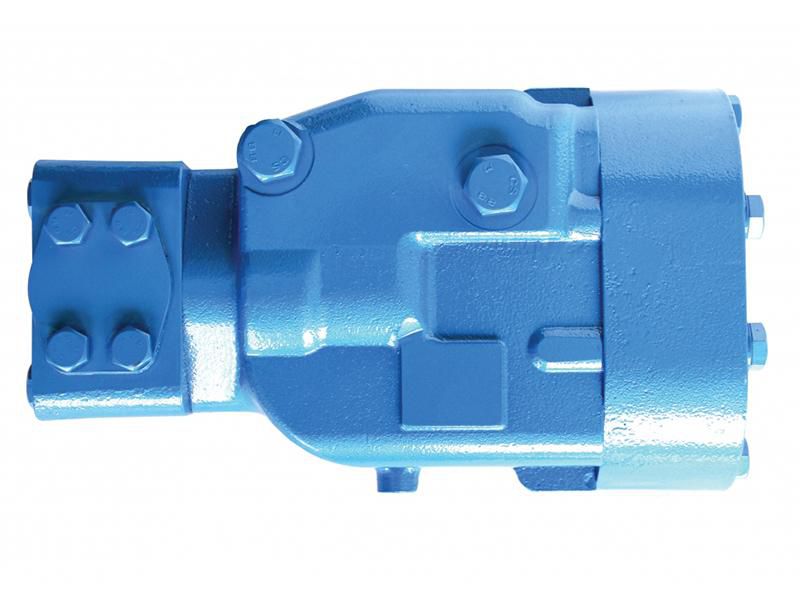

KJV20 Quick Drop Valve
- Quick drop valve allows high flow rates while reducing pressure loss.
- Hydraulic valve offers a precise fluid flow control.
- Valve module is highly sensitive to pressure changes.
Applications
- Bulldozer
- Mining machinery
Parameters
| Rated pressure (MPa) | 20 |
| Rated flow (L/min) | 200 |
| Output flow (L/min) | 125±15 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20-100 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight(kg) | 18 |
