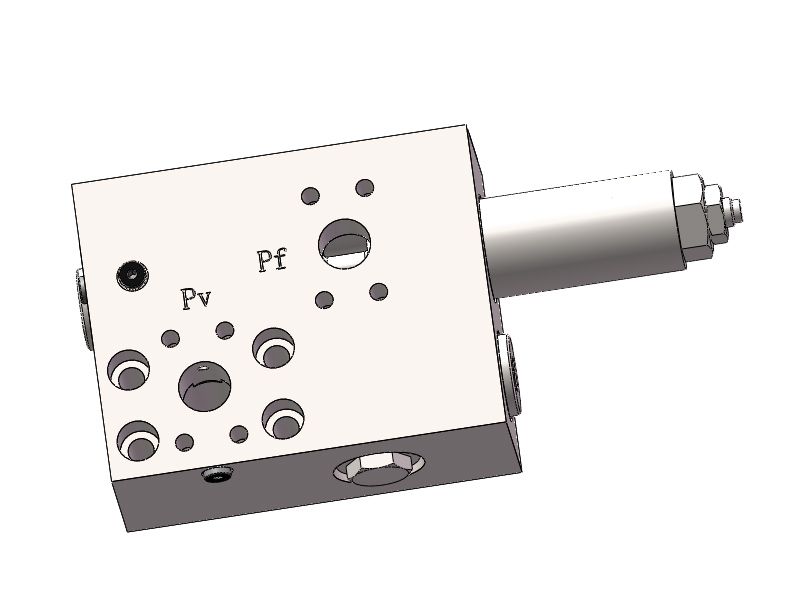

CV32 Logic Control Valve
- Designed for load-sensitive and variable systems, the CV32 offers precise logic control, adjusting fluid dynamics in real time to match operational demands
- It seamlessly coordinates between a steering variable pump and a working system's fixed pump, with automatic flow division for optimal efficiency
- Features a low-pressure unloading capability for fixed pumps, significantly reducing operational energy consumption
- Equipped with a high-pressure unload valve function, enhancing system safety and efficiency by managing pressure peaks effectively
Applications
- Wheel loaders
- Excavators
- Bulldozers
- Material handling equipment
Parameters
| Rated pressure (MPa) | 31.5 |
| Rated flow (L/min) | 350 (maximum flow: 400L/min) |
| Differential pressure (MPa) | 1.5-2 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～100 |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 18 |

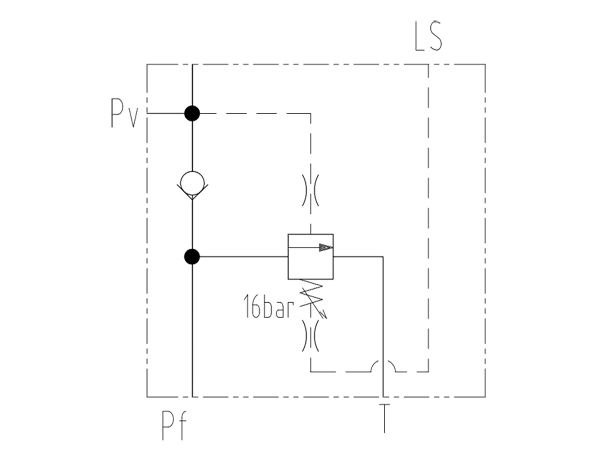

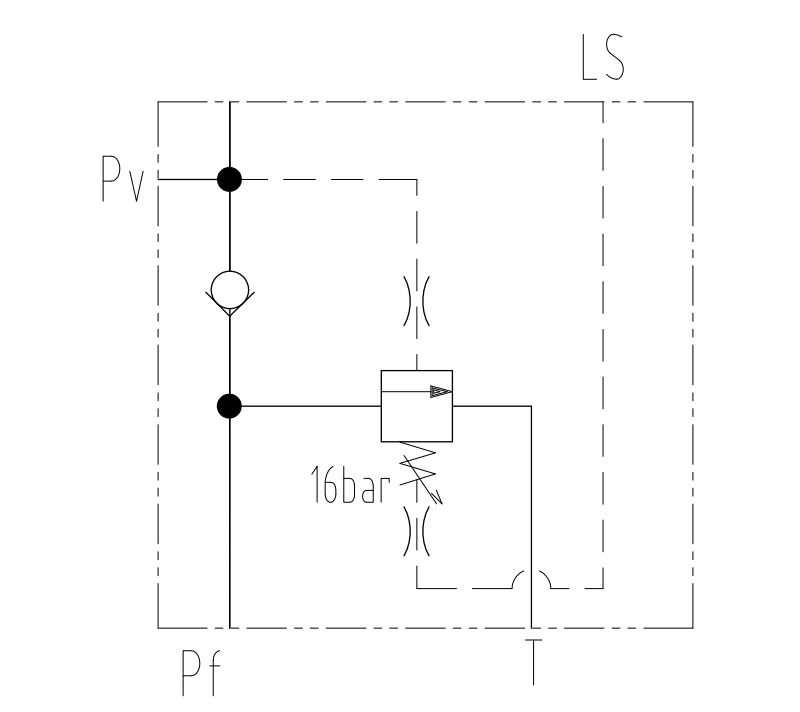

Hydraulic System Schematic Diagram

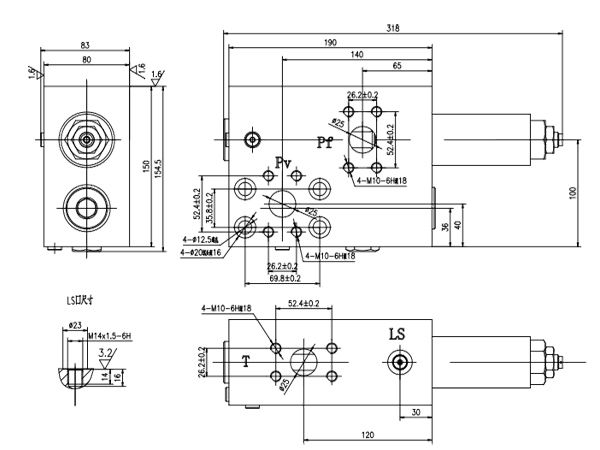

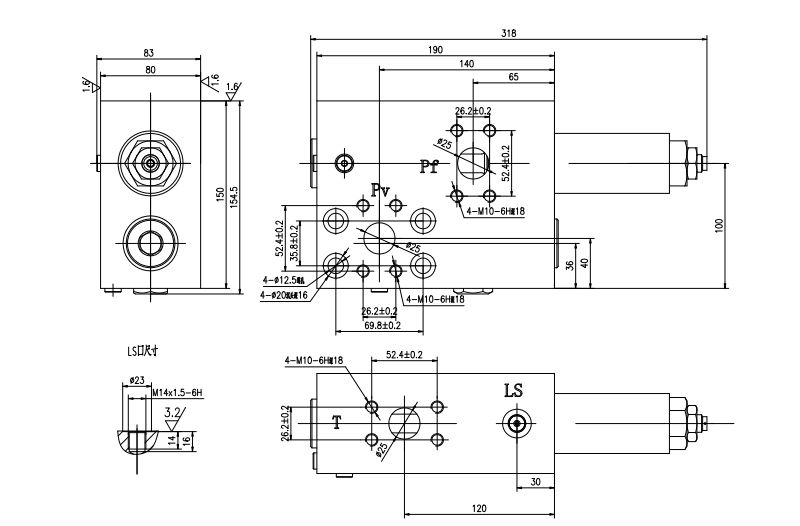

External Connection Dimensions
