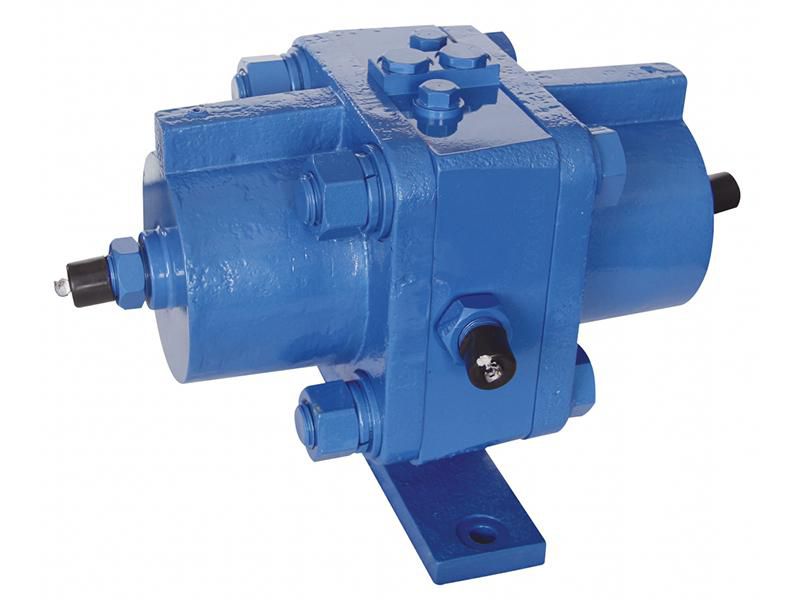

SAJ90 Regulating Valve
- Regulating valve has compact construction and simple piping layout.
- Hydraulic valve with a spring return actuator has a low back pressure.
- Valve module has a good sealing performance.
Applications
- Mining machinery
Parameters
| Brake pressure (MPa) | 8.7 |
| Oil discharge volume (ml) | 150 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～100 |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight(kg) | 33 |
