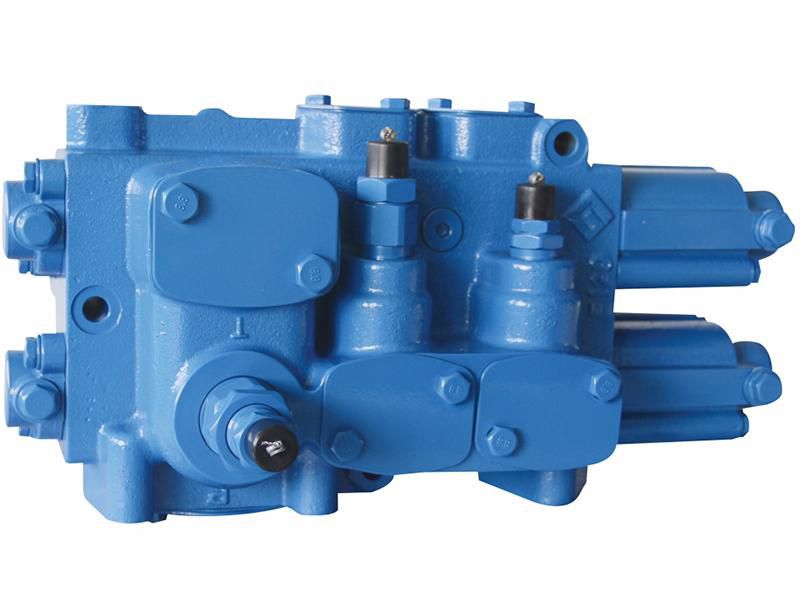

D32 Monoblock Directional Control Valve
- Monoblock directional control valve is available in 2 sections or 3 sections.
- Spool with smoothly polished surfaces enables precise control of fluid flow.
- Directional control valve has excellent flow characteristics, thus allowing high flow rates.
- Designed with proportional pilot control, monoblock control valve requires low operating force.
- Monoblock valve is equipped with safety valve, overload valve and charge valve, suitable for a wide range of applications, easy maintenance.
- Loop type: serial-parallel connection, serial connection.
- Spool function: 3 positions, 4 positions.
Applications
- Loader
- Bulldozer
- Agricultural machinery
- Material handling machinery
- Compactor
- Forestry machinery
- Container crane
Parameters
| Rated pressure (MPa) | 25 |
| Rated flow (L/min) | 350 (maximum flow: 415 L/min) |
| Pressure range of main overflow valve (MPa) | 10-25 |
| Pressure range of secondary overflow valve (MPa) | 15-31.5 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | -20-100 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | D32: 57 D32A: 91 |
