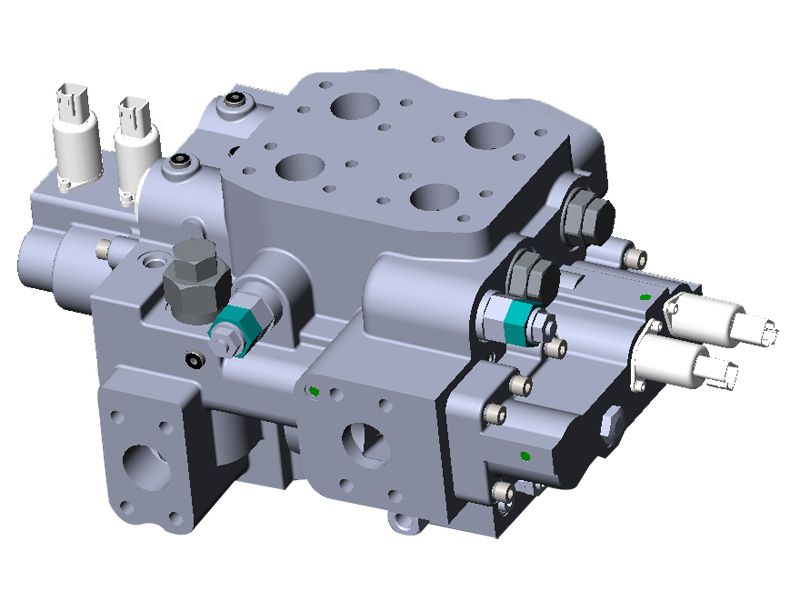

EG40 Electro-Hydraulic Proportional Flow Control Valve
- Electro-hydraulic proportional flow control valves integrate a dual-section, multi-way valve structure, offering a cohesive solution for complex hydraulic systems
- These flow control valves provide various valve core functions that users can select and combine according to their needs
- The valve cores feature precisely controlled grooves, delivering efficient speed control performance and superior repeatability
- Incorporate load independent flow dividing (LIFD) control, which ensures that the flow rate is unaffected by load pressure, leading to energy savings and comfortable operation.
- Equipped with a return oil regeneration function, the valve saves energy and prevents cavitation, enhancing system efficiency.
- It includes built-in cartridge-style main safety valves, overload valves, and replenishment valves, ensuring good versatility and ease of maintenance.
- Suitable for both constant and variable systems; ideal for various hydraulic applications.
Applications
- Wheel loaders
- Excavators
- Bulldozers
- Telescopic handlers
- Material handling equipment
Parameters
| Rated pressure (MPa) | 31.5 |
| Rated flow (L/min) | 400 (maximum flow: 450L/min) |
| Pressure range of main overflow valve (MPa) | 15～31.5 |
| Pressure range of secondary overflow valve (MPa) | 15～31.5 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～100 |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-2002 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 75 |

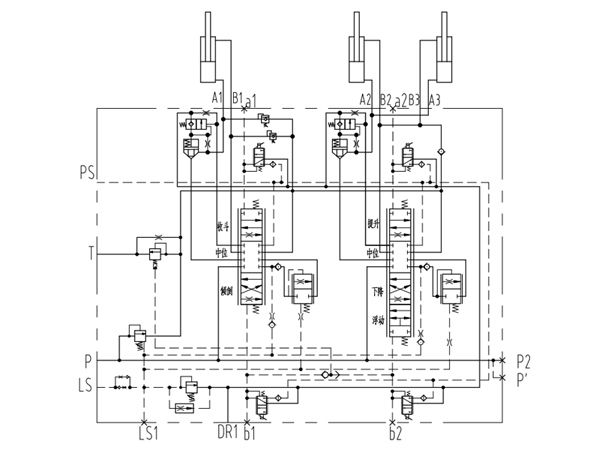

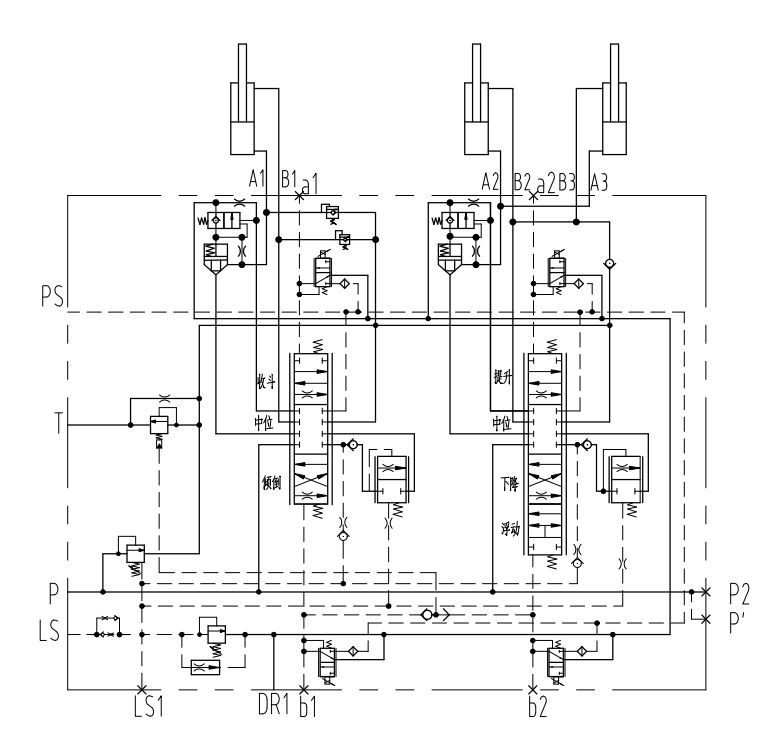

Hydraulic System Schematic Diagram

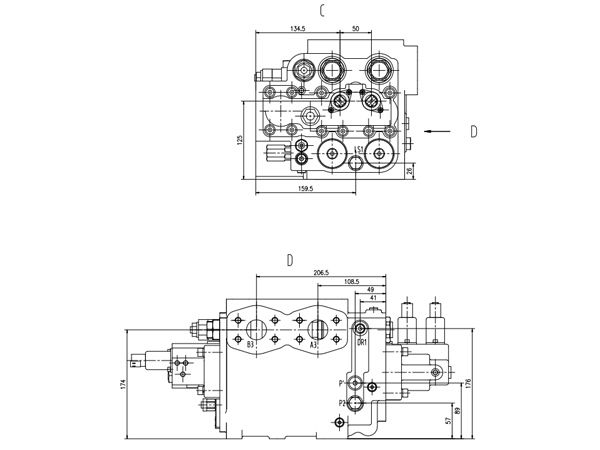

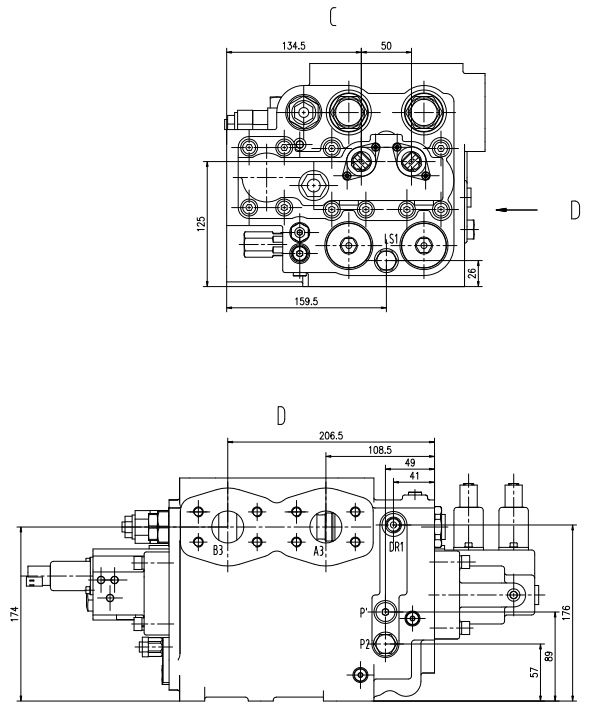

External Connection Dimensions
