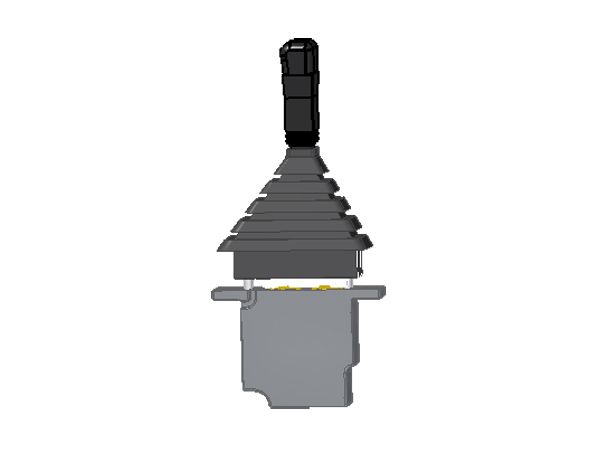

2TH06LT Hydraulic Pilot Control Valve
- Designed for easy setup, thanks to its compact size and streamlined design
- Adapts well to different uses due to its sectional design
- Simple to operate, making handling smooth and effortless
- Responds quickly and accurately, ensuring reliable performance
- Customizable pressure settings to precisely match the requirements of multi-directional valves, enhancing compatibility and performance
Applications
- Wheel loaders
- Excavators
- Cranes
- Agricultural machinery
- Forestry equipment
Parameters
| Pilot pressure (MPa) | Maximum 7 |
| Control flow (L/min) | Maximum 20 |
| Opening pressure (MPa) | 0.4 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20℃～80℃ |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-2002 level 18/15 or NAS 1638 level 9 |
| Weight (kg) | 0.9 |

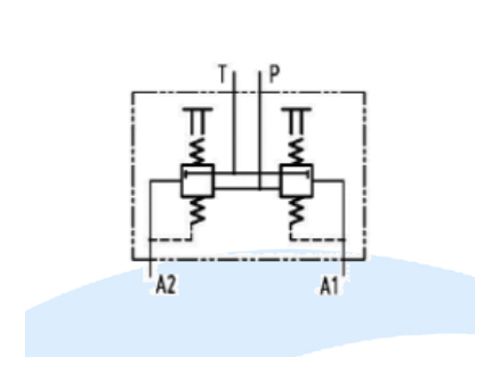

Hydraulic System Schematic Diagram

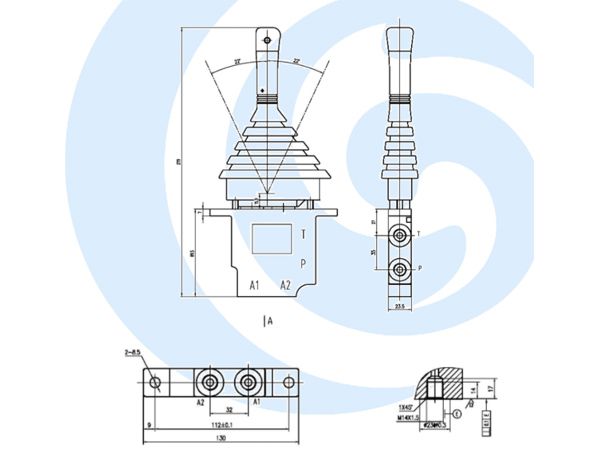

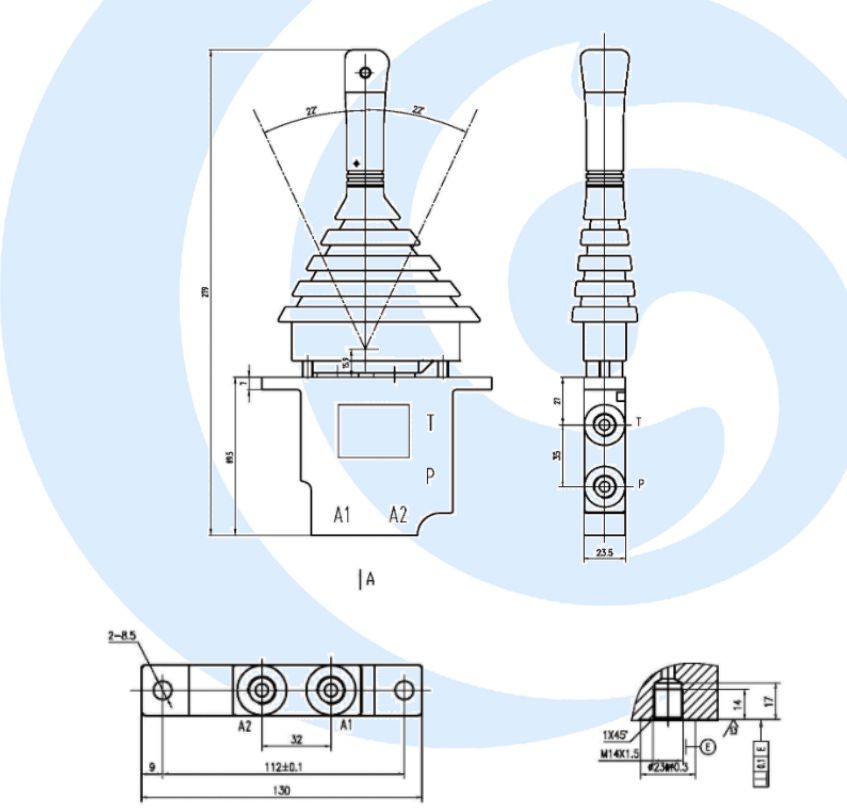

Installation Connection Dimension
