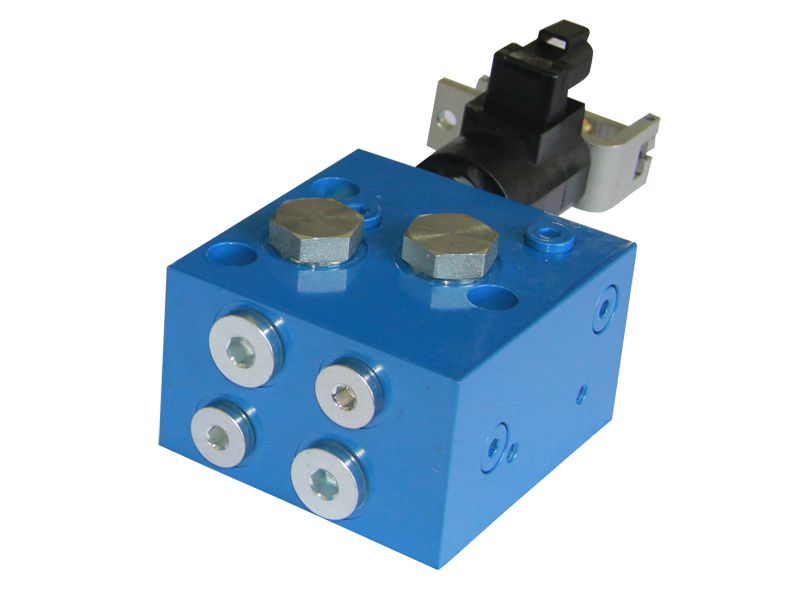

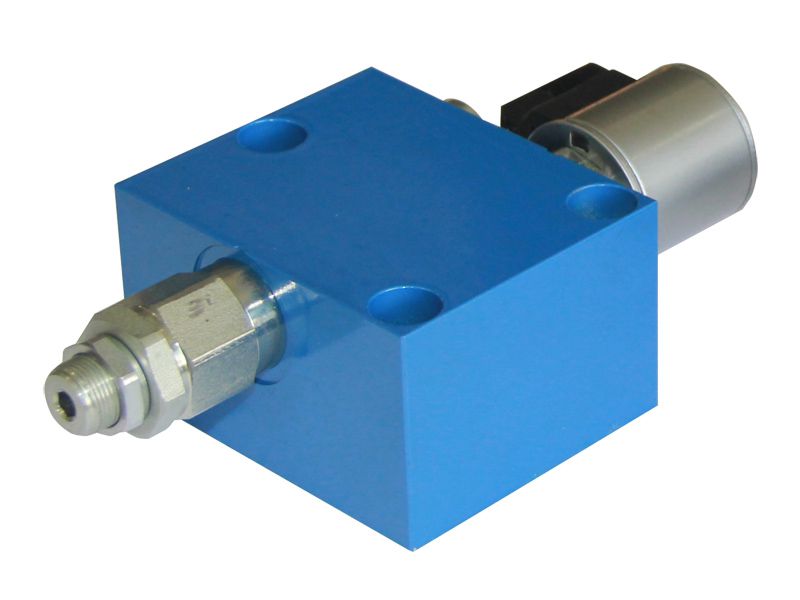

HCV10.D/U Cylinder Control Valve

  • Available with different voltage electromagnetic coils, the valve can be tailored to various applications and power supplies, enhancing its versatility
  • Both proportional and switchable valve types can be selected to suit specific operational needs, providing precise control over hydraulic cylinder movements
  • An emergency feature ensures that operations remain safe and reliable, even in unexpected situations, contributing to workplace safety
  • The valve can be customized according to specific client demands, ensuring that each solution perfectly matches the intended application
Applications
  • Scissor lifts & aerial work platforms
Parameters
Rated pressure (MPa) 25
Rated flow (L/min) 20
Pressure range of overflow valve (MPa) 6～18
Working voltage of solenoid valve (V) 20VCD±15%/24VCD±15%
Hydraulic oil Mineral oil (HL, HLP) in accordance with DIN 51 524
Fluid temperature range (℃) －20～100
Viscosity range (mm2/s) 10～380
Fluid cleanliness Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10
Weight (kg) 1.4/2

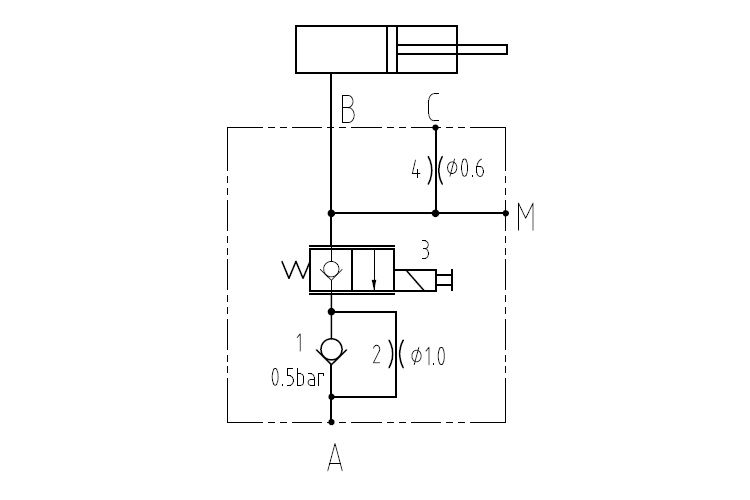

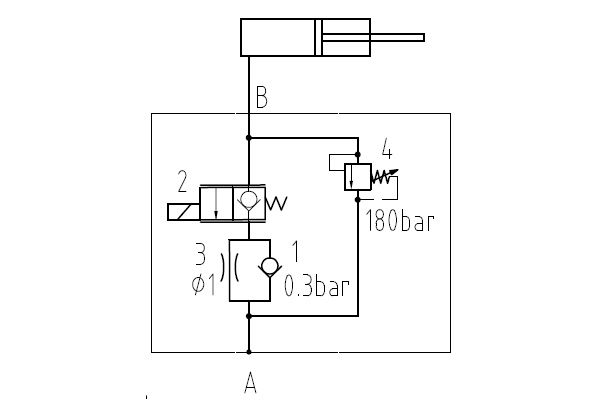

Hydraulic System Schematic Diagram
  • Hydraulic System Schematic Diagram
  • Hydraulic System Schematic Diagram

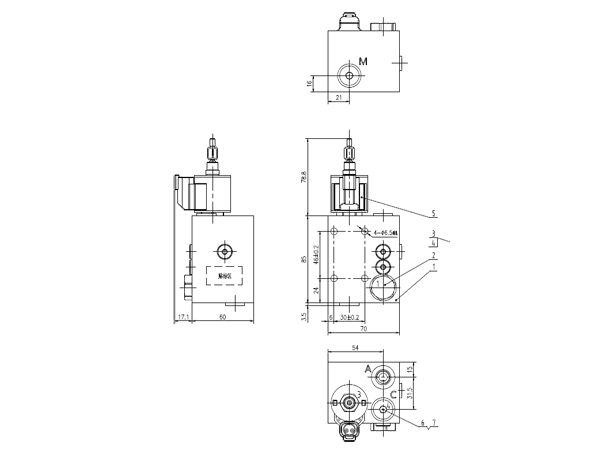

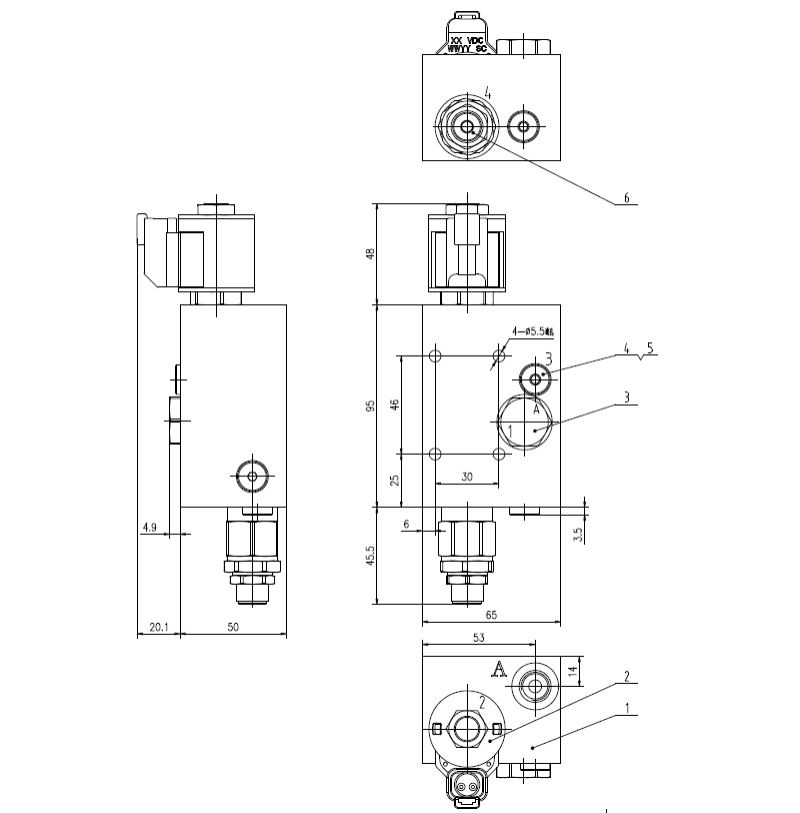

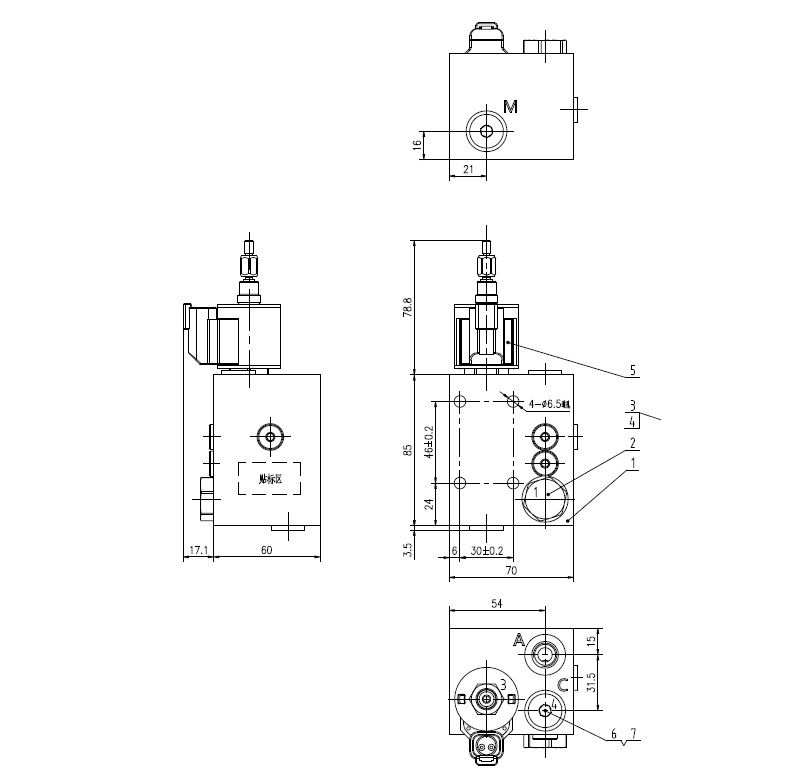

External Connection Dimensions
  • External Connection Dimensions
  • External Connection Dimensions
