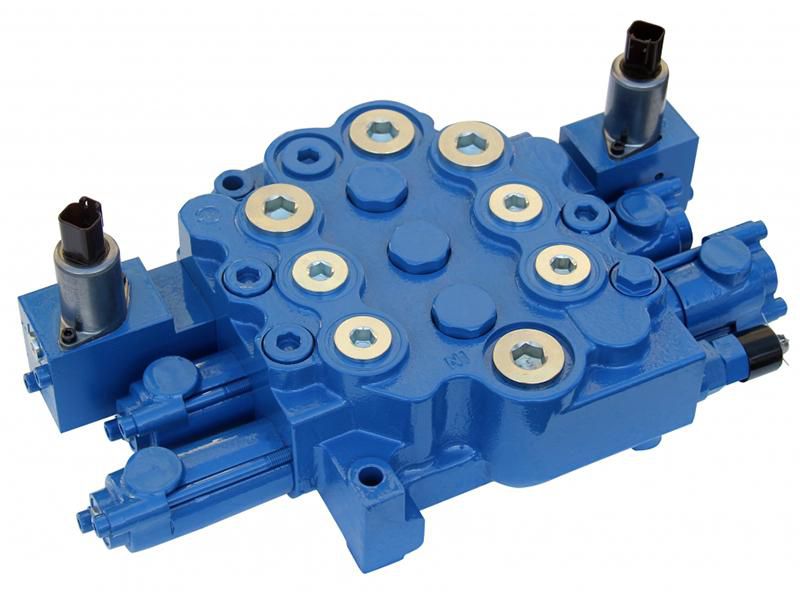

GSV20 Monoblock Directional Control Valve
- Max. operating pressure of directional control valve is up to 25 bar, thus allowing high flow rates.
- Spool with smoothly polished surfaces enables precise control of fluid flow.
- Monoblock control valve is equipped with overload valve and charging valve, suitable for a wide range of applications, easy maintenance.
- Hydraulic pilot-operated valve comes in four positions to allow the cylinder to float.
- Wide choice of spool functions.
- Loop type: serial-parallel connection.
- Location mode: spring return.
Applications
- Skid steer loader
- Small sized loader
- Tractor auxiliary function
- Multi-purpose engineer vehicle
- Material handling machinery
Parameters
| Rated pressure (MPa) | 25 |
| Rated flow (L/min) | 100 |
| Pressure range of main overflow valve (MPa) | 10-25 |
| Pressure range of secondary overflow valve (MPa) | 15-31.5 |
| Charging valve opening pressure (MPa) | ≤0.15 |
| Solenoid valve | Voltage: 12VDC, electric current: 1.5A (max) |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20-100 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 20 |
