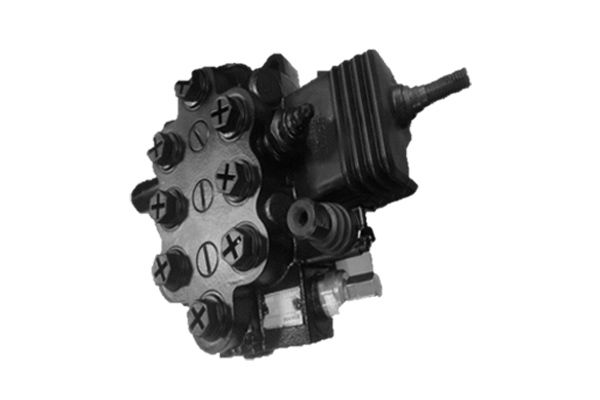

SGSV15 Multi-Way Directional Valve
- Its integrated triple-section configuration simplifies complex hydraulic requirements, enabling streamlined and effective system integration
- A diverse selection of valve cores allows for precise customization to meet specific operational criteria, ensuring optimal performance
- The valve supports synchronized actions, providing operators with intricate and precise maneuvering capability
- Engineered for exceptional control accuracy, the valve facilitates nuanced operations, particularly in applications requiring fine adjustments
Applications
- Wheel loaders
- Bulldozers
- Agricultural machinery
- Material handling equipment
- Forestry equipment
Parameters
| Rated pressure (MPa) | 25 (maximum flow: 31.5MPa) |
| Rated flow (L/min) | 45 |
| Port pressure (MPa) | 0.6-2 |
| Pressure range of safety valve (MPa) | 15～31.5 |
| Working voltage of solenoid valve | DC12V |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～100 |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 7.5 |

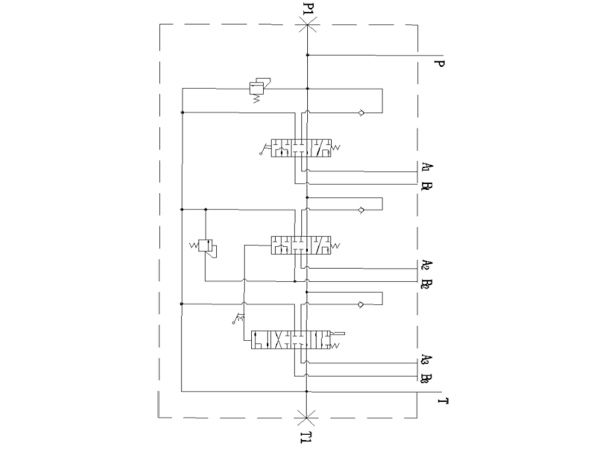

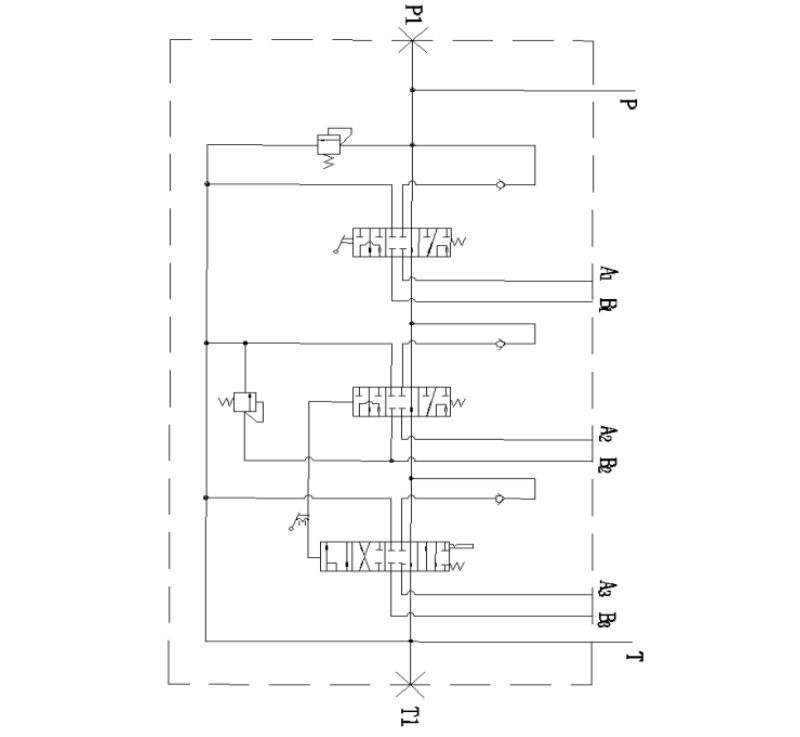

Hydraulic System Schematic Diagram

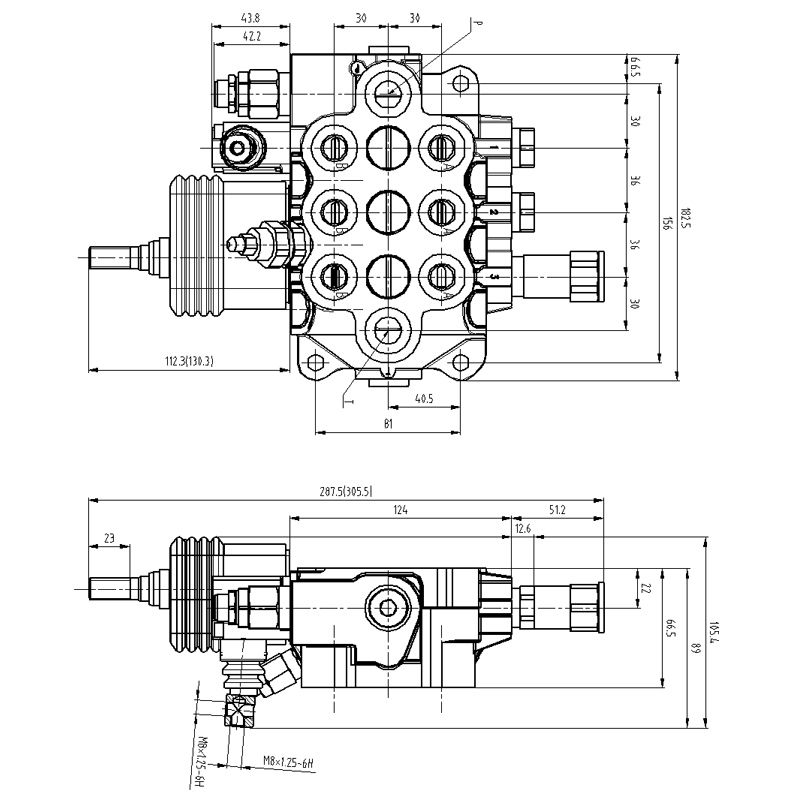

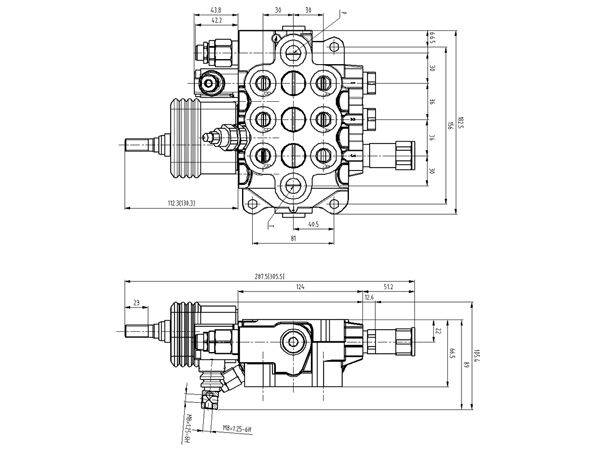

External Connection Dimensions
