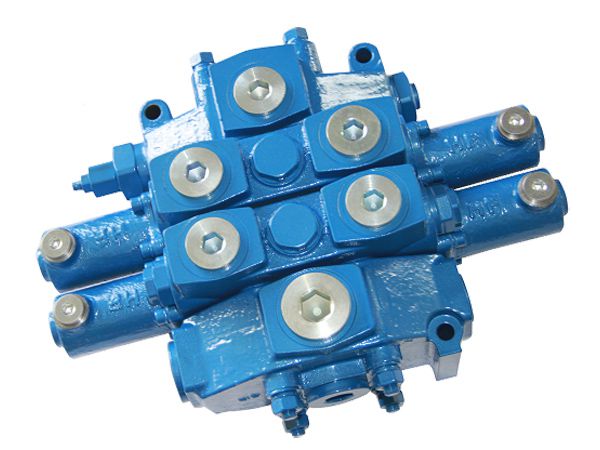

TDV20 Sectional Multi-Way Valve
- These multi-war valves’ modular structure supports 1 to 8 sections, offering customizable combinations to suit specific operational needs
- It accommodates parallel, parallel, or dual circuit systems within a single multi-way valve assembly, enhancing system versatility
- With precision-engineered grooves in the valves cores, they delivers progressive flow control characteristics, ensuring a broad range of flow rates for precise fluid management
- Operated via hydraulic remote control, offering ease of operation and integration into existing systems
- Its compact design facilitates efficient piping layouts, making installation and integration straightforward
- Featuring built-in cartridge-style main safety valves, overload valves, replenishment valves, and check valves, the valve is designed for ease of maintenance and high adaptability
Applications
- Wheel loaders
- Bulldozers
- Agricultural machinery
- Material handling equipment
- Forestry equipment
- Container lifting equipment
Parameters
| Rated pressure (MPa) | 25 |
| Rated flow (L/min) | 150 |
| Pressure range of main overflow valve (MPa) | 10～30 |
| Pressure range of secondary overflow valve (MPa) | 15～32 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～100 |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 32 |

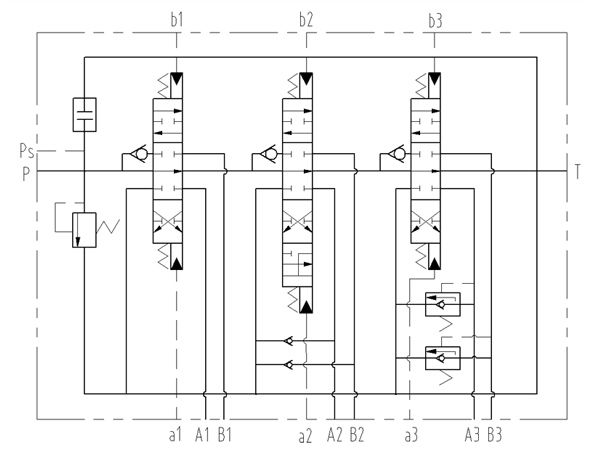

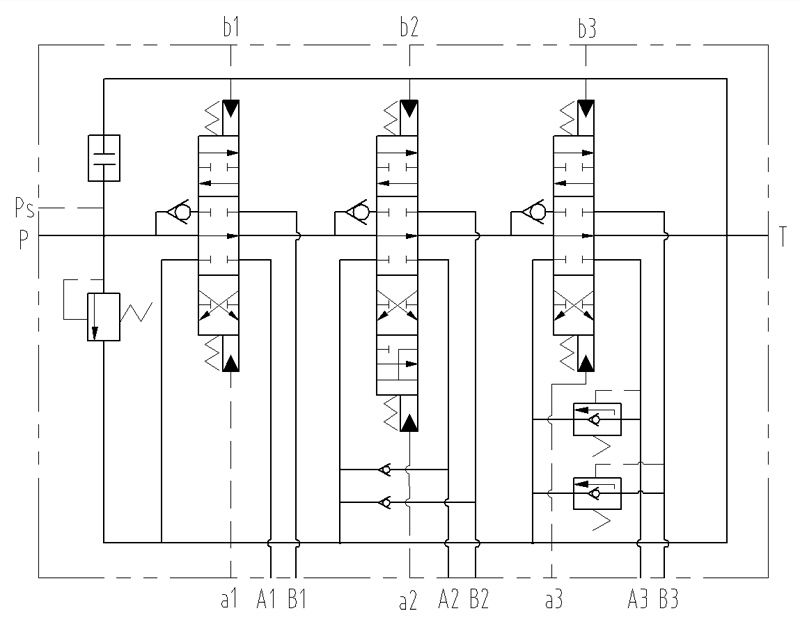

Hydraulic System Schematic Diagram

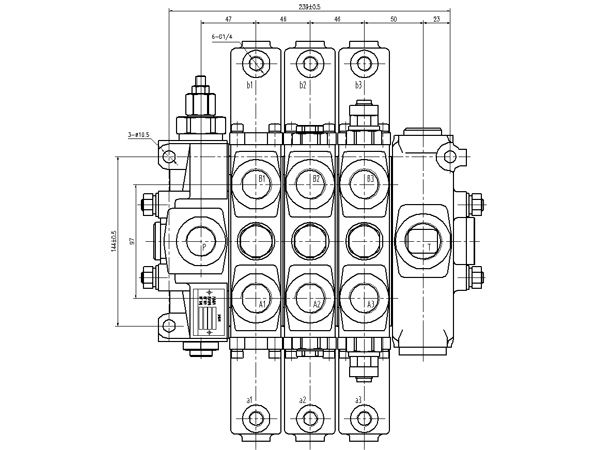

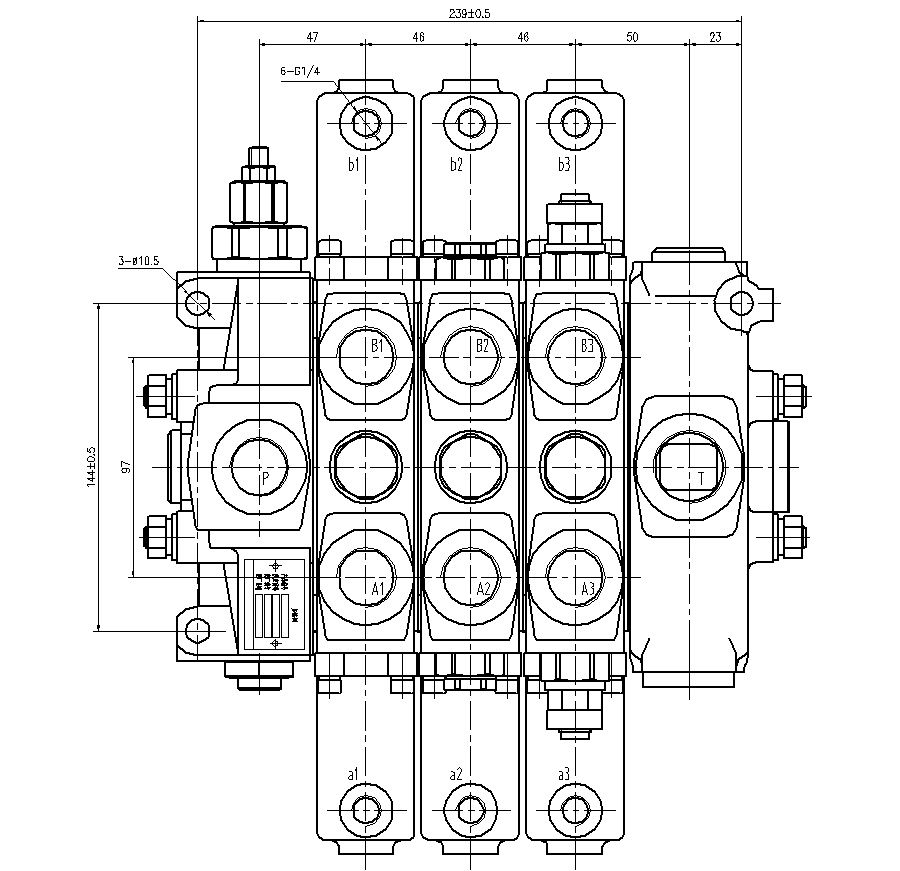

External Connection Dimensions
