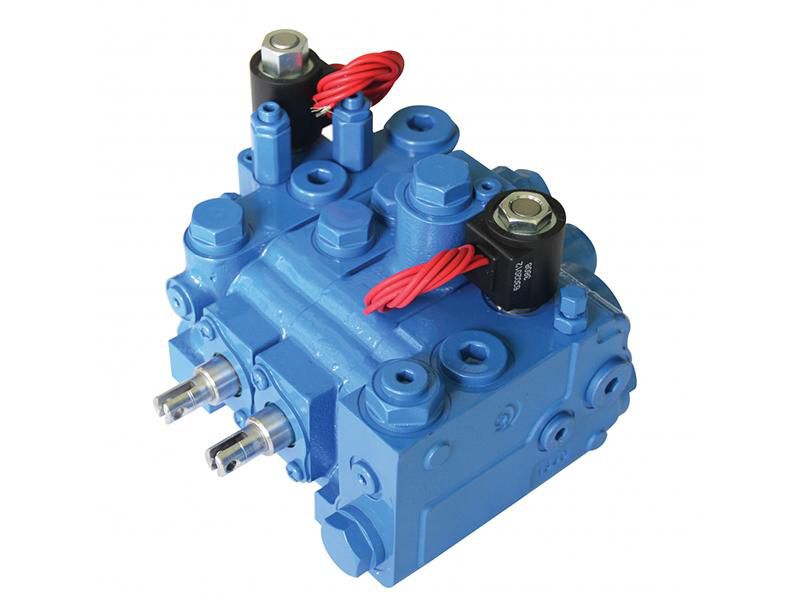

CDV15G Sectional Directional Control Valve
- Sectional control valve is equipped with solenoid valve to control downstream pressure, offering high operational safety.
- Inlet section is highly integrated.
- Sectional control valve can divert or stop fluid flow in hydraulic systems.
- Control valve is specially designed to lock the flow in cylinder and offer speed control.
- Working section brings load sensing control to direct flow regardless of load pressure.
Applications
- Forklift (1-3 tons)
- Material handling machinery
Parameters
| Rated pressure (MPa) | 25 |
| Rated flow (L/min) | 75 (maximum flow: 95 L/min) |
| Pressure range of main overflow valve (MPa) | 10-25 |
| Pressure range of secondary overflow valve (MPa) | 15-31.5 |
| Actuating force (N) | 120 |
| Solenoid valve working volatage | DC12V |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20-100 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-2002 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 58.3 |
