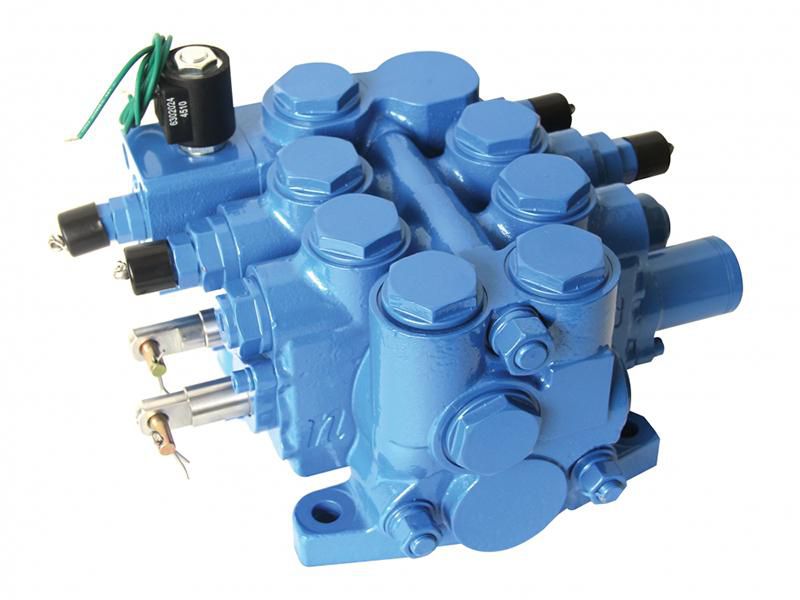

DL20CD Sectional Directional Control Valve
- Sectional directional control valve is available in multiple sections.
- Wide choice of spool functions.
- Control valve has two inlets, thus improving performance.
- Valve inlet is connected to a solenoid valve to ensure that operating pressure is not exceeded.
- Perfect piping layout design to reduce pressure loss.
- Sectional control valve is equipped with safety valve, overload valve, charge valve and check valve, suitable for a wide range of applications, easy maintenance.
- Loop type: parallel circuit, series circuit.
Applications
- Excavator/loader
- Forklift
- Agricultural tractor auxiliary function
- Drilling rig
- Hoisting machinery
- Material handling machinery
Parameters
| Rated pressure (MPa) | 25 | |
| Rated flow (L/min) | 160 (maximum flow: 200 L/min) | |
| Pressure range of main overflow valve (MPa) | 10-25 | |
| Pressure range of secondary overflow valve (MPa) | 15-31.5 | |
| Solenoid valve working volatage (electric current) | DC24V (electric current: 0.7A) | |
| Actuating force (N) | 170 | |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 | |
| Fluid temperature range (℃) | －20-100 | |
| Viscosity range (mm2/s) | 10-380 | |
